Hydraulic Thruster Brake vs Electromagnetic Disc Brake: Which to Specify, and How to Order It
Thruster brake or electromagnetic disc brake? Compare braking torque, response time, duty and cost for cranes, conveyors and mill drives — with the full spec ranges we manufacture and exactly what to send for a quote.
Short answer: specify a hydraulic thruster brake when you need high braking torque with smooth, controlled application on heavy drives — crane travel and hoist motions, conveyor head shafts, mill and crusher drives. Specify an electromagnetic disc brake when you need fast, repeatable stopping in a compact envelope at moderate torque — packaging lines, automated machinery, positioning drives. Both are spring applied and fail safe. Super Mech Industries manufactures thruster brakes from 200 to 20,000 Nm and electromagnetic disc brakes from 5 to 2,000 Nm in Ahmedabad.
The choice is not really about which is "better". It is about torque, response time, duty cycle and where the brake has to physically sit. This guide walks through both, side by side, and ends with the information we need to size one for you.
Spring applied, power released — why that matters
Both brake types we manufacture work the same way at the safety level: a spring applies the brake, and power holds it off. In a thruster brake, an electro-hydraulic thruster pushes against the spring to lift the shoes off the drum. In an electromagnetic disc brake, a coil pulls an armature against the spring to release the disc.
The consequence is the important part. When power is lost — a trip, a cable fault, an emergency stop — the release force disappears and the spring applies the brake. The brake is on by default. Any brake used for hoisting, holding, or arresting a load that could run away must work this way. A brake that needs power to apply is not a safety brake, whatever its torque rating.

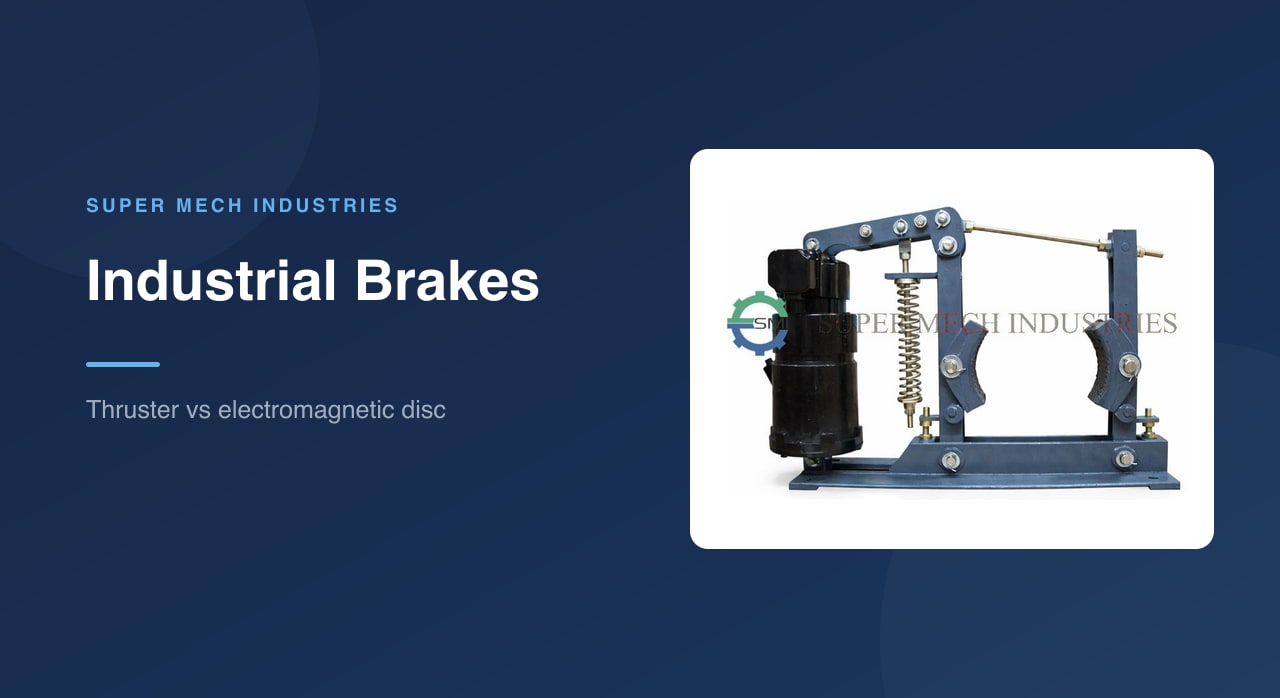

Hydraulic thruster brake
A thruster brake clamps two shoes onto a rotating brake drum. The clamping force comes from a compression spring acting through a lever and rod mechanism; the electro-hydraulic thruster — a small motor-driven impeller in oil — provides the release force. Because the thruster releases and applies over a short but finite travel, the brake engages progressively rather than slamming on.
Specification range we manufacture
| Parameter | Range |
|---|---|
| Braking torque | 200 – 20,000 Nm |
| Operating pressure | 100 – 150 bar |
| Disc / drum diameter | 300 – 800 mm |
| Temperature range | −10 °C to +80 °C |
| Response time | Under 0.3 seconds |
More detail and photographs on the Hydraulic Thruster Brake product page.
Where it belongs
- EOT crane long travel, cross travel and hoist motions — the classic application, usually on a brake drum coupling at the motor.
- Conveyor head and drive shafts, particularly on inclined runs where controlled stopping matters.
- Steel plant and rolling mill drives — high torque, hot, dusty environments.
- Crushers, mills and mining equipment — where the rotating inertia is large.
- Emergency stop duty on heavy machinery, where smooth deceleration protects the mechanism as well as the load.
Strengths and limits
Strengths: very high torque for the money, smooth progressive application that is kind to gearboxes and structures, simple mechanically, easy to inspect and adjust, shoe linings replaceable in the field. Limits: physically large, needs a drum, requires periodic adjustment as linings wear, and the thruster oil level and seals are a maintenance item. Response is fast but not instantaneous.
Electromagnetic disc brake
An electromagnetic disc brake uses a coil to pull an armature plate against spring pressure, releasing a friction disc that is splined to the shaft. Energise the coil and the brake releases; cut the current and the springs clamp the disc. There is no hydraulic fluid and no lever mechanism, so the whole assembly is compact and the response is essentially electrical.
Specification range we manufacture
| Parameter | Range |
|---|---|
| Torque range | 5 – 2,000 Nm |
| Voltage options | 24V DC, 110V AC, 230V AC |
| Duty cycle | S1 to S6 |
| Protection | IP54 / IP65 |
| Insulation class | F |
More detail on the Electromagnetic Disc Brake product page.
Where it belongs
- Conveyor and material handling drives that stop and start frequently and need position repeatability.
- Packaging and automated manufacturing lines, where cycle time depends on stopping quickly.
- Stage and theatre machinery, where quiet, precise holding is required.
- Geared motor holding duty — mounted at the motor non-drive end as a fail-safe hold.
- Space-constrained drives where there is simply no room for a drum and shoe assembly.
Strengths and limits
Strengths: fastest response of the two, compact and light for its torque, minimal maintenance, no fluids, sealed to IP54 or IP65 for dusty and damp areas. Limits: torque ceiling is much lower, heat dissipation is limited in high-inertia stopping, and application is abrupt — which is desirable for positioning but hard on gear teeth if the inertia is large.
Side by side
| Factor | Hydraulic thruster brake | Electromagnetic disc brake |
|---|---|---|
| Torque range | 200 – 20,000 Nm | 5 – 2,000 Nm |
| Friction element | Shoes on a drum | Disc and armature plate |
| Release actuator | Electro-hydraulic thruster | Electromagnet coil |
| Application character | Progressive, smooth | Immediate, abrupt |
| Response time | Under 0.3 s | Faster — essentially electrical |
| Size for a given torque | Large | Compact |
| Maintenance | Lining wear adjustment, thruster oil | Air gap check, minimal otherwise |
| Environment | Open mechanism, tolerant of heat and dust | Sealed IP54 / IP65 |
| Best fit | Cranes, mills, heavy conveyors | Automation, packaging, positioning |
How much braking torque do you need?
There are two distinct questions, and confusing them is the most common specification error.
Holding duty
The brake must hold a static load without slipping. Start with the full-load torque at the shaft where the brake sits:
T (Nm) = 9,550 × P (kW) ÷ n (RPM)
Then multiply by a safety factor. Travel and traverse motions commonly use 1.5 to 2.0. Hoisting duty is governed by statutory and standard requirements that are higher, and often requires two independent braking systems — check the applicable crane standard and your plant's safety requirements rather than a rule of thumb.
Note carefully where the brake sits. A brake on the motor shaft, upstream of the gearbox, sees the motor-side torque; a brake on the drum shaft sees torque multiplied by the gearbox ratio. A 15 kW motor at 1,440 RPM is about 100 Nm at the motor shaft, but roughly 2,000 Nm at the output of a 20:1 reducer. Specifying the wrong location is how a brake ends up an order of magnitude undersized.
Stopping duty
Here the brake has to absorb kinetic energy, not just resist torque. The required torque depends on the total rotating inertia reflected to the braked shaft, the speed, and how fast you need to stop. Long conveyor belts, large drums and heavy loads all add inertia that is invisible in a kW rating. If your requirement is "stop this within X seconds", tell us X and the masses involved — that is a different calculation from a holding brake and it drives both torque and thermal sizing.
Mounting: brake drum couplings
On crane and conveyor drives, the usual arrangement puts the brake drum on the coupling between motor and gearbox. The coupling transmits torque and its outer body is the brake surface. That saves a shaft extension and keeps the drive compact.
We manufacture the couplings and the brakes, which means the drum diameter, runout and shoe geometry are matched at source rather than assembled from two suppliers' catalogues:
- Brake drum gear coupling — gear coupling with an integral brake drum, for higher torque and misalignment capability.
- Brake drum pin bush coupling — pin-and-bush flexible element with a brake drum, common on lighter crane duties.
- Brake drum with flexible geared coupling — for drives needing both flexibility and a braking surface.
If you are replacing a brake on an existing drive, measure the drum diameter and width and send those figures — the drum you already have often decides the brake frame.
Installation and maintenance points that actually cause failures
- Lining wear not adjusted. As shoe linings wear, the thruster stroke increases until it can no longer generate full clamping force. Braking torque falls off gradually and quietly. Check and adjust on a schedule, not when someone notices poor braking.
- Air gap drift on disc brakes. The same problem in a different form. As the disc wears the air gap grows until the coil can no longer pull the armature in, and the brake starts dragging or fails to release cleanly.
- Oil or grease on the friction surface. A leaking gearbox seal above the brake will contaminate the linings and cut braking torque dramatically. Fix the leak; do not just clean the linings.
- Drum overheating and glazing. A brake being used to decelerate heavy inertia repeatedly may be thermally undersized even if the torque rating is right. Blued or glazed drum surfaces are the visible symptom.
- Thruster oil level and seal condition. A thruster that cannot develop full stroke will not release the brake fully, and the brake then drags — which destroys linings quickly and wastes energy continuously.
- Wrong voltage or duty class on a disc brake coil. Coils are rated for a duty class; running an S1-rated coil on high cycle-rate S6 duty overheats it.
What to send us for a quote
- Application — crane travel, crane hoist, conveyor, mill, machine drive.
- Motor power (kW) and speed (RPM).
- Where the brake mounts — motor shaft, coupling drum, gearbox output shaft.
- Existing brake drum diameter and width, if you are replacing a brake.
- Duty — holding only, or stopping? If stopping, the required stopping time and the load or inertia involved.
- Cycle rate — starts and stops per hour.
- For disc brakes, the coil voltage available and the duty class.
- Environment — ambient temperature, dust, outdoor exposure, wash-down.
- Quantity and delivery location.
A photograph of the existing brake and its nameplate, plus one showing the mounting arrangement, answers most of these at once.
Why Super Mech Industries
We are an ISO 9001:2015 certified manufacturer in Ahmedabad, Gujarat, exporting to 29 countries. Brakes, brake drum couplings, gear couplings, gear units, pulleys and sprockets are made in the same facility. For a crane or conveyor drive that means the brake and the drum it runs on can be quoted, matched and shipped together — and if the braking performance is ever in question, one supplier owns the whole interface rather than two pointing at each other.
See the full product range, or use the torque calculator to work out the shaft torque figure before you enquire.
Frequently asked questions
What is the difference between a thruster brake and an electromagnetic disc brake?
Both are spring applied and fail safe. A thruster brake is released by an electro-hydraulic thruster and clamps shoes onto a drum — high torque, smooth application, best on heavy crane, conveyor and mill drives. An electromagnetic disc brake is released by an electromagnet and clamps a disc — faster response, more compact, best where precise repeated stopping matters and torque demand is moderate.
What torque range do you manufacture?
Hydraulic thruster brakes from 200 to 20,000 Nm with drum diameters of 300 to 800 mm; electromagnetic disc brakes from 5 to 2,000 Nm in 24V DC, 110V AC and 230V AC, IP54 or IP65.
Are these brakes fail safe?
Yes. Both are spring applied and power released, so the brake applies automatically on power failure. That is why spring-applied brakes are the correct choice for any hoisting or holding duty.
How much braking torque do I need?
For holding, size against full-load torque at the braked shaft times a safety factor — commonly 1.5 to 2.0 on travel and traverse duties, higher and statutorily governed for hoisting. For stopping, rotating inertia and required stopping time also matter. Send us the kW, RPM, brake location and duty and we will calculate it.
Can the brake mount on a brake drum coupling?
Yes, and that is the most common arrangement. We manufacture brake drum gear couplings, brake drum pin bush couplings and the thruster brakes that run on them, so drum and shoe geometry are matched at source.
Do you supply replacement linings and spares?
Yes. Send a photograph of the brake and its nameplate, or the drum diameter and shoe dimensions, and we will identify what you need.
