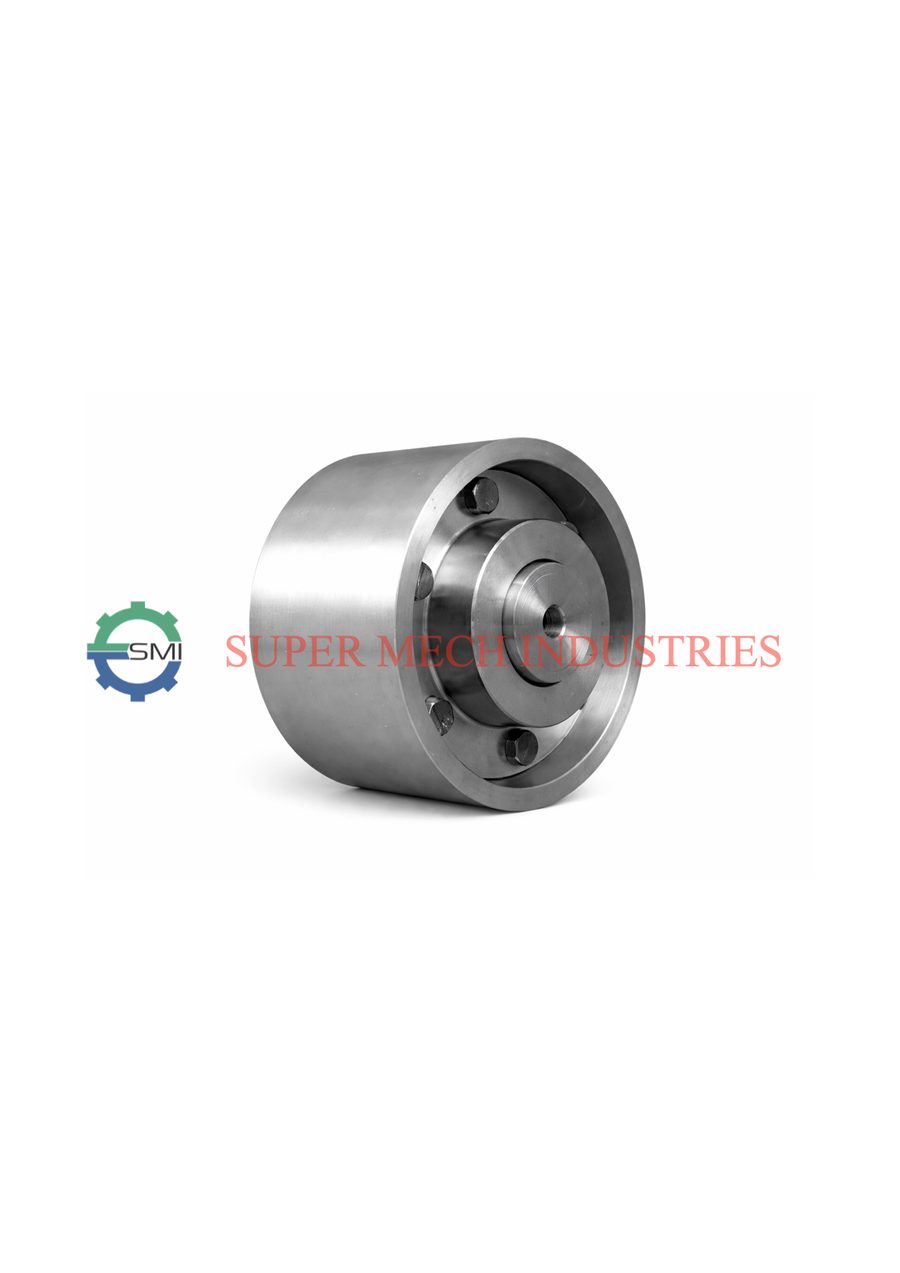

Brake Drum with Flexible Geared Coupling Manufacturer in Ahmedabad, India
Brake Drum with Flexible Geared Coupling from Super Mech Industries is made in Ahmedabad, India in 14 catalogue sizes, SBDC 150 to SBDC 500, rated from 500 Nm to 21,950 Nm, with bores finished to order up to 135 mm.
At Super Mach Industries, we ensure high manufacturing quality and precision to deliver long-lasting performance. We supply Brake Drum with Flexible Geared Couplings from Ahmedabad, Gujarat, and serve customers across all states in India, meeting diverse industrial requirements. In addition to domestic supply, we also export this coupling to foreign countries, complying with international standards and export-grade quality expectations. This coupling is ideal for applications that demand misalignment compensation, shock absorption, and safe stopping mechanisms.
Key Features
- Flexible geared coupling for misalignment accommodation
- Integrated brake drum for controlled braking
- High torque transmission capacity
- Absorbs shock and vibration
- Durable and heavy-duty construction
Specifications
- Torque Range: Medium to high duty
- Speed: Suitable for industrial RPM range
- Material: Alloy steel gears with cast iron brake drum
- Lubrication: Grease or oil lubricated
Applications
- Hoists
- Cranes
- Conveyors
- Heavy industrial machinery
Brake drum with gear coupling (SBDC) — ratings and dimensions
Sizes SBDC 150 to SBDC 500 (drum diameter in mm). Torque in Nm; bores and dimensions in mm; weight in kg.
| Size | Bore min (mm) | Max bore D1 (mm) | Max bore D2 (mm) | Torque (Nm) | Max speed (rpm) | ØA (drum) (mm) | ØB1 (mm) | ØB2 (mm) | C1 (mm) | C2 (mm) | ØE (mm) | ØF (mm) | G (mm) | H (mm) | I (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBDC 150 | 15 | 40 | 32 | 500 | 7900 | 150 | 65 | 50 | 64 | 45 | 75 | 120 | 1 | 80 | 95 | 110 | 7.600 |
| SBDC 160 | 15 | 45 | 32 | 500 | 7900 | 160 | 70 | 50 | 74 | 45 | 75 | 120 | 1 | 90 | 110 | 120 | 9.000 |
| SBDC 178 | 15 | 45 | 32 | 700 | 8100 | 178 | 70 | 50 | 74 | 45 | 75 | 120 | 1 | 90 | 110 | 120 | 10.500 |
| SBDC 200 | 20 | 55 | 40 | 1000 | 6400 | 200 | 90 | 65 | 77 | 55 | 110 | 170 | 2 | 100 | 120 | 134 | 15.500 |
| SBDC 250 | 20 | 65 | 40 | 1000 | 6400 | 250 | 105 | 65 | 77 | 55 | 110 | 170 | 2 | 120 | 130 | 134 | 24.500 |
| SBDC 250A | 20 | 65 | 55 | 2710 | 5000 | 250 | 105 | 85 | 77 | 70 | 125 | 185 | 2 | 120 | 130 | 149 | 27.000 |
| SBDC 300 | 30 | 85 | 68 | 4900 | 4000 | 300 | 130 | 105 | 105 | 85 | 150 | 220 | 2 | 150 | 170 | 192 | 50.000 |
| SBDC 300A | 40 | 85 | 85 | 9200 | 3350 | 300 | 130 | 130 | 105 | 105 | 175 | 250 | 2 | 150 | 170 | 212 | 57.000 |
| SBDC 375 | 40 | 85 | 85 | 9200 | 3350 | 375 | 135 | 130 | 110 | 105 | 175 | 250 | 3 | 165 | 185 | 218 | 84.000 |
| SBDC 400 | 40 | 95 | 85 | 9200 | 3350 | 400 | 150 | 130 | 118 | 105 | 175 | 250 | 3 | 180 | 210 | 226 | 91.000 |
| SBDC 400A | 40 | 95 | 100 | 14300 | 2800 | 400 | 150 | 155 | 116 | 110 | 200 | 290 | 4 | 180 | 210 | 230 | 100.000 |
| SBDC 450 | 40 | 110 | 100 | 14300 | 2800 | 450 | 170 | 155 | 120 | 110 | 200 | 290 | 5 | 200 | 220 | 235 | 123.000 |
| SBDC 450A | 40 | 110 | 110 | 21950 | 2500 | 450 | 170 | 175 | 120 | 125 | 230 | 320 | 5 | 200 | 220 | 250 | 132.000 |
| SBDC 500 | 50 | 135 | 110 | 21950 | 2500 | 500 | 210 | 175 | 145 | 125 | 230 | 320 | 5 | 225 | 250 | 275 | 189.000 |
- Dimension letters refer to the drawing on the SMI spec sheet.
Source: SMI spec sheet brake-drum-flexible-geared-coupling.pdf.
Brake drum geared couplings (SBDGC) — ratings and dimensions
Drum sizes 4 in to 12 in. Torque in Nm; finished bore range and dimensions in mm; weight in kg.
| Size (drum) | Torque (Nm) | Max speed (rpm) | Bore min (mm) | Bore max (mm) | ØA (drum) (mm) | ØB (mm) | C (mm) | ØD (mm) | E (mm) | L (mm) | L1 (mm) | L2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBDGC 4" | 980 | 8000 | 15 | 40 | 101.6 | 80 | 70 | 65 | 15 | 102.5 | 43 | 57 | 5.0 |
| SBDGC 5.5" | 1600 | 6300 | 15 | 45 | 139.7 | 85 | 85 | 70 | 20 | 125 | 55 | 67 | 12.6 |
| SBDGC 6" | 2450 | 6300 | 15 | 45 | 152.5 | 90 | 85 | 70 | 20 | 125 | 55 | 67 | 14.0 |
| SBDGC 6.3" | 2450 | 6300 | 15 | 45 | 160.0 | 90 | 85 | 70 | 20 | 125 | 55 | 67 | 16.0 |
| SBDGC 7" | 4400 | 5000 | 20 | 55 | 177.8 | 120 | 95 | 85 | 20 | 140 | 60 | 75 | 20.0 |
| SBDGC 8" | 8350 | 4000 | 20 | 75 | 203.2 | 120 | 95 | 120 | 20 | 145 | 58 | 82 | 26.8 |
| SBDGC 10" | 19620 | 3350 | 25 | 90 | 254.0 | 150 | 115 | 140 | 20 | 170 | 73 | 92 | 50.0 |
| SBDGC 12" | 31500 | 2850 | 25 | 110 | 304.8 | 225 | 125 | 175 | 30 | 204 | 75 | 124 | 68.0 |
- Dimension letters refer to the drawing on the SMI spec sheet.
Source: SMI spec sheet brake-drum-flexible-geared-coupling.pdf.
Frequently Asked Questions
What is the Brake Drum with Flexible Geared Coupling used for?
The Brake Drum with Flexible Geared Coupling is used in hoists, cranes, conveyors, heavy industrial machinery. The Brake Drum with Flexible Geared Coupling manufactured and supplied by Super Mach Industries is a robust and reliable power transmission solution designed for heavy-duty industrial applications. This coupling combines the flexibility of a geared coupling with an integrated brake drum, allowing smooth torque transmission while supporting effective braking control.
What are the key specifications of the Brake Drum with Flexible Geared Coupling?
Key specifications include Torque Range: Medium to high duty; Speed: Suitable for industrial RPM range; Material: Alloy steel gears with cast iron brake drum; Lubrication: Grease or oil lubricated. Custom sizes are available on request.
Does Super Mech Industries offer custom Brake Drum with Flexible Geared Coupling sizes?
Yes. SMI manufactures the Brake Drum with Flexible Geared Coupling with custom bore, material, and design to your drawing, dispatched from our Odhav, Ahmedabad facility — standard sizes typically ship the same week.
Is the Brake Drum with Flexible Geared Coupling from SMI ISO certified?
Yes. Super Mech Industries is ISO 9001:2015 certified (Certificate No. 09114716A) and holds government ZED certification, manufacturing the Brake Drum with Flexible Geared Coupling in Ahmedabad, Gujarat, India, with exports to 29 countries.
What sizes of Brake Drum with Flexible Geared Coupling does SMI manufacture?
SMI lists 14 sizes from SBDC 150 to SBDC 500 rated from 500 Nm to 21,950 Nm, with bores finished up to 135 mm. The full size chart with dimensions is on this page and on the spec sheet.
