TC Series Tyre Coupling Manufacturer in Ahmedabad, India

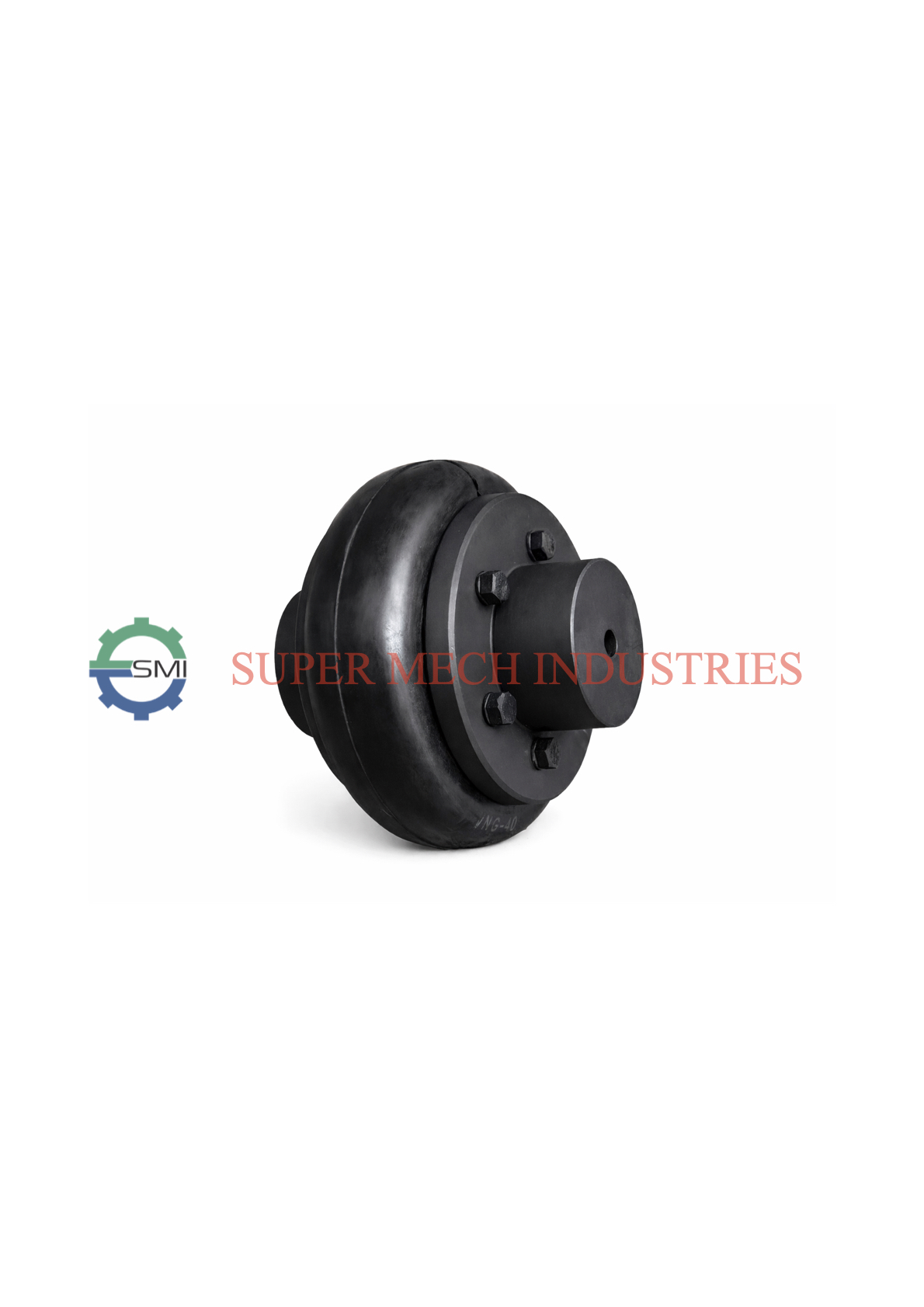

Super Mech Industries is a tyre coupling manufacturer in Odhav, Ahmedabad, and the TC series is its heavy-duty tyre coupling with taper bush mounting. A rubber tyre element joins two flanges, absorbing shock and vibration and taking angular, axial and radial misalignment without lubrication. The spec sheet lists sizes TC/001 to TC/025 and larger.
TC Series Tyre Couplings are designed for demanding industrial applications where ease of maintenance and durability are essential. These couplings use a split rubber tyre element mounted between two flanges with taper bushes, allowing easy hub installation and removal. The rubber tyre provides excellent flexibility, absorbing shocks and handling significant misalignments. The coupling is fail-safe and highly reliable, making it ideal for heavy-duty use.
Key Features
- Taper bush mounting for quick installation and removal
- High misalignment capacity (angular, axial, radial)
- Excellent vibration damping and shock absorption
- Split tyre design allows easy replacement without disturbing hubs
- No lubrication required
Specifications
- Torque Range: 100-25,000 Nm
- Bore Sizes: 14-300mm (with taper bush)
- Speed: Up to 4,000 RPM
- Temperature Range: -40°C to +70°C
- Tyre Material: Natural rubber or neoprene
- Mounting: Taper bush type
Applications
- Crushers and conveyors
- Heavy pumps and fans
- Mixers and agitators
- Industrial gearboxes
- Steel and mining machinery
Frequently Asked Questions
Does Super Mech Industries manufacture tyre couplings in India?
Yes. Super Mech Industries manufactures tyre couplings at its factory in Odhav, Ahmedabad, including the TC series with taper bush mounting on this page and the A series. The company is ISO 9001:2015 certified (Certificate No. 09114716A), holds ZED certification and exports to 29 countries.
What is a TC series tyre coupling?
It is a heavy-duty tyre coupling with taper bush mounting. A split rubber tyre element is mounted between two flanges with taper bushes, so the hubs are quick to install and remove, and the tyre can be replaced without disturbing the hubs.
What sizes are on the TC series spec sheet?
The SMI spec sheet lists sizes TC/001 to TC/025, then TC/026 and larger. Its columns cover maximum bore, maximum speed, continuous and maximum torque, main dimensions, torsional stiffness, inertia, misalignment and weight. Open it with the View Spec Sheet button on this page, or send your shaft sizes, kW and rpm and SMI's engineers will come back with the size.
Does a tyre coupling need lubrication?
No. The TC series transmits torque through its rubber tyre element and needs no lubrication.
How much misalignment can a TC series tyre coupling take?
It is built for high angular, axial and radial misalignment, and the rubber tyre damps vibration and absorbs shock. Ask SMI for the permissible values for your size and drive when you enquire.
Where are TC series tyre couplings used?
Typical applications are crushers and conveyors, heavy pumps and fans, mixers and agitators, industrial gearboxes, and steel and mining machinery.
Should I choose the TC series or the A series?
Choose the TC series (taper bush) when the coupling will be fitted and removed often, or when one hub has to suit several shaft sizes; choose the A series (pilot bore) when the bore is machined to one shaft. The Fenner tyre coupling equivalent guide compares the two.
Exported from Ahmedabad to 29 countries
Super Mech Industries exports from Ahmedabad, India to 29 countries, shipping from Mundra Port (Gujarat) or JNPT (Nhava Sheva, Mumbai).
