Fenner Tyre Coupling Equivalent in India (2026)
Looking for a Fenner tyre coupling equivalent in India? SMI manufactures compatible F40–F140 tyre couplings (A & TC series) at India pricing. Size cross-reference and how to verify fit.
Fenner tyre couplings are a long-established brand, but for replacements and new builds many Indian buyers want a locally manufactured, certified alternative at India pricing. This guide explains how SMI's tyre couplings compare and how to confirm a correct fit.
Company details are compiled from public records and IndiaMART/TradeIndia listings (2026); verify certifications directly. Brand names are used for compatibility reference only — SMI couplings are independently manufactured alternatives, not genuine OEM parts.
Quick Answer
SMI's Tyre Coupling A-Series (pilot bore) and TC-Series (taper bush) are compatible alternatives to the standard Fenner Tyre F-series, manufactured in Ahmedabad with ISO 9001:2015 + ZED certification. They follow the same F40–F140 sizing convention.
Size cross-reference (standard F-series)
| Standard Size | Typical use | SMI series |
|---|---|---|
| F40 / F50 / F60 | Small pumps, fans | A / TC |
| F70 / F80 / F90 | Compressors, conveyors | A / TC |
| F100 / F110 / F120 | Crushers, mills | A / TC |
| F140 | Heavy industrial drives | A / TC |
Important: size codes are an industry convention, but always confirm outer diameter, length and bore against your existing coupling or drawing before ordering — small dimensional differences exist between makers.
Why source a local equivalent
- India pricing and faster supply within Asia/MEA.
- Custom bore machined to your shaft.
- Verifiable ISO 9001:2015 certification.
- Replacement rubber elements readily available.
How a tyre coupling works, and why it forgives so much

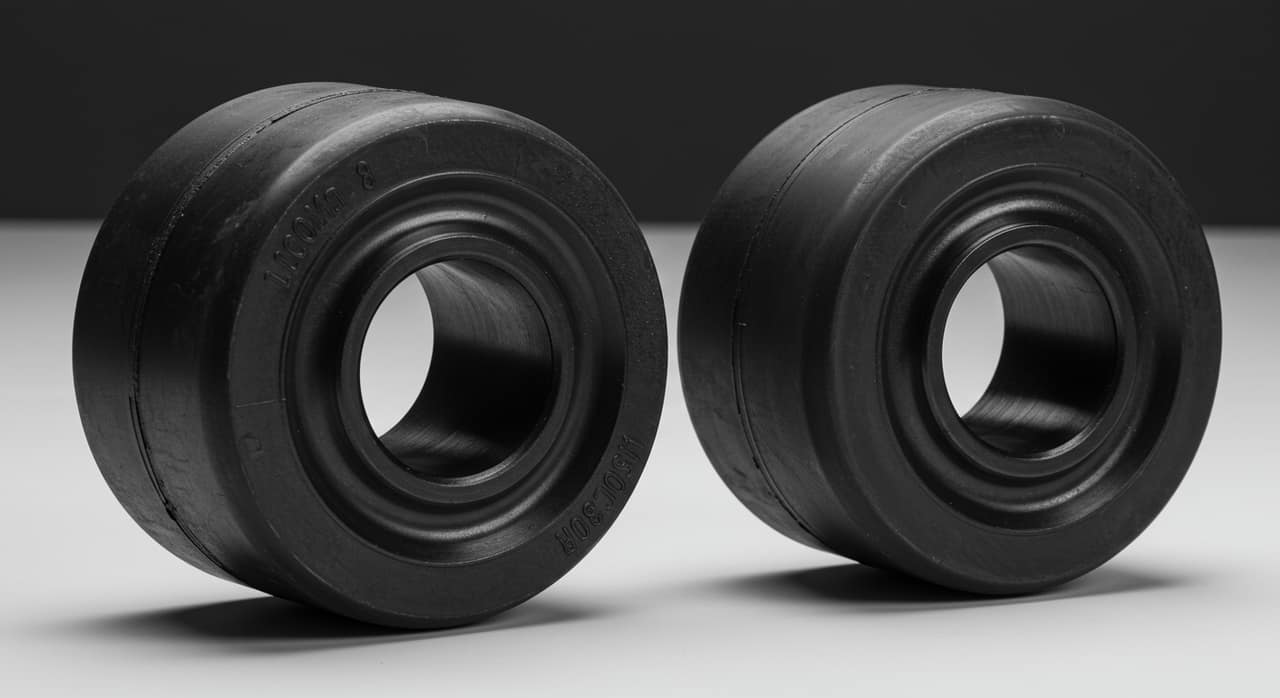

A tyre coupling uses a flexible rubber element shaped like a tyre carcass, clamped between two flanged hubs by clamping rings and bolts. Torque passes through the rubber in shear. There is no metal-to-metal contact anywhere in the torque path, which produces the coupling's three signature properties: very large misalignment tolerance, excellent shock absorption, and no lubrication ever.
The trade-off is torsional softness and a temperature limit set by the rubber. A tyre coupling will not hold a shaft in precise angular relationship, and it will not survive alongside a hot process the way a steel coupling does.
A-Series or TC-Series: pilot bore versus taper bush
This is the choice most buyers get wrong on the first order, and it has nothing to do with torque.
| A-Series (pilot bore) | TC-Series (taper bush) | |
|---|---|---|
| How it mounts | Bore machined to your exact shaft size | Standard taper bush grips the shaft |
| Best when | Shaft is non-standard, or you want the tightest fit | You want quick fitting and removal, or several shaft sizes in one hub |
| Removal | Puller, sometimes heat | Jacking screw — minutes |
| Spares strategy | Each hub is shaft-specific | One hub, different bushes for different shafts |
| Cost | Lower part cost, machining time | Bush adds cost, saves labour every time |
Our rule of thumb: for a machine that is fitted once and rarely touched, A-Series is economical. For anything that gets swapped, serviced or moved — rental plant, standby pumps, maintenance-heavy lines — the TC-Series pays back on the first removal.
Identifying the size you actually have
The F-number is an industry convention, but the marking is often painted over or worn away. Measure instead:
- Rubber element outside diameter — the single most useful figure.
- Element width across the tyre.
- Flange outside diameter and the bolt circle diameter.
- Number of clamping bolts per side.
- Both shaft diameters and keyway sizes.
Photograph the assembled coupling from the side and the flange face. With those measurements we can confirm the equivalent size and whether the element alone will fit your existing hubs — which is usually all you need.
Sizing for a new drive
Calculate the torque at the coupling:
T (Nm) = 9,550 × P (kW) ÷ n (RPM)
Then apply a service factor. Tyre couplings are usually specified where shock is expected, so the factor matters more here than on a smooth drive: around 1.25 for fans and centrifugal pumps, 1.5 to 1.75 for compressors and conveyors, 2.0 or above for crushers and mills. Select on the service-factored torque, then confirm both shaft diameters sit comfortably within the size's bore range.
Also check speed. Rubber elements have a maximum RPM per size, and it falls as size increases because of centrifugal stress on the element. A large tyre coupling on a two-pole motor is a combination to check rather than assume.
Element life, and what shortens it
- Heat is the primary enemy. Ambient temperature plus heat generated by misalignment plus radiated heat from a nearby process all add up. A rubber element run hot hardens, then cracks at the flange edge.
- Oil and solvents swell and soften standard rubber. Fix the leak above the coupling; a coupling sitting in an oil mist will not last.
- Sunlight and ozone matter on outdoor installations — surface crazing on the element is the visible sign.
- Overload shows as circumferential tearing near the clamping rings.
- Clamping bolt torque. Under-tightened rings let the element creep and fret; over-tightened ones crush the bead. Tighten to the specified figure, evenly, and re-check after the first running period.
The good news is that the element is a consumable and the hubs are not. Keeping one spare element per critical drive on the shelf turns a failure into a short planned stop.
When a tyre coupling is the wrong choice
- Very high torque in a small envelope — go to a gear coupling.
- High ambient or process temperature — the elastomer is the limit; a steel coupling is not affected the same way.
- Where torsional stiffness is needed for positioning or timing — a tyre coupling is deliberately soft.
- Severe shock at high torque — a grid coupling handles peaks that would tear a rubber element.
If you are weighing several families, our coupling selection guide sets them side by side, and the tyre coupling manufacturer comparison covers supplier evaluation.
What to send us for a quote or a cross-reference
- The existing size marking, or the five measurements listed above.
- Motor kW and RPM.
- Both shaft diameters and keyway sizes.
- Driven machine and duty, including starts per hour.
- A-Series or TC-Series preference, or ask us to advise.
- Ambient temperature and any oil or chemical exposure.
- Whether you need complete couplings or replacement elements only.
- Quantity and delivery location.
More questions on this
Should I order A-Series pilot bore or TC-Series taper bush?
A-Series is machined to your exact shaft and is economical for a machine fitted once. TC-Series uses a standard taper bush that fits and releases in minutes, so it pays back on any drive that gets serviced, swapped or moved. The choice is about maintenance access, not torque.
Can I replace just the rubber element and keep my existing hubs?
Usually yes, provided the hubs are undamaged and the element dimensions match. Send the element outside diameter and width, the flange outside diameter and bolt circle, and the number of clamping bolts, and we will confirm before you order.
Do tyre couplings need lubrication?
No. There is no metal-to-metal contact in the torque path, so there is nothing to grease. That is one of the main reasons they are chosen for inaccessible or dirty locations.
Why did my tyre element crack after a few months?
Heat is the usual cause — ambient temperature, a hot process nearby, or heat generated inside the rubber by misalignment. Oil contamination and over-tightened clamping rings are the next most common. Check alignment and the environment before simply fitting another element.
Send your size or a photo of the old coupling — SMI's engineers will confirm the correct equivalent.
