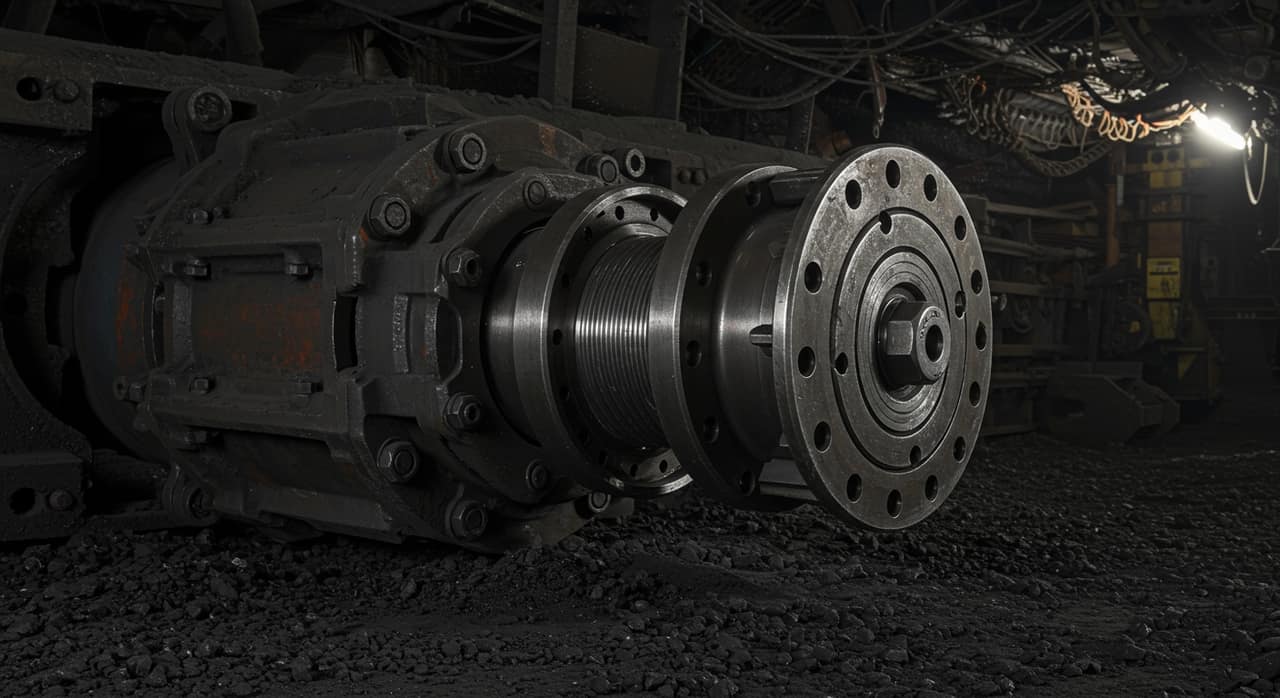

Gear Couplings for Mining Equipment: Shock and Dust

Design features that extend coupling life in crushers, feeders, and screens.

Mining operations present extreme challenges for power transmission equipment. Gear couplings for mining must withstand severe shock loads, abrasive dust, and remote operating conditions while maintaining reliability.

Mining Environment Challenges

Operational Conditions

  • Extreme shock loads from rock impact
  • Abrasive dust infiltrating all openings
  • High torque for crushing and grinding
  • Remote locations limiting spare parts access
  • Variable loads from feed conditions
  • Outdoor exposure to weather

Equipment Criticality

Mining downtime costs are significant:

  • Lost production valued in thousands per hour
  • Cascading effects on downstream processes
  • Safety implications from rushed repairs
  • Logistics challenges for replacement parts

Key Applications

Primary Crushers

The most demanding coupling application:

Parameter Typical Range
Input power 200-2000 kW
Speed 150-900 RPM
Service factor 3.0-4.0
Shock frequency Random, severe

Secondary/Tertiary Crushers

High torque with frequent reversing:

  • Cone crusher drives
  • Impact crusher connections
  • Gyratory crusher main drives

Grinding Mills

Sustained heavy loading:

  • Ball mills and SAG mills
  • Rod mills
  • Vertical roller mills

Material Handling

Conveyors and feeders:

  • Belt conveyor drives
  • Apron feeder mechanisms
  • Vibrating screen drives

Design Features for Mining

Shock Absorption

Heavy-duty designs incorporate:

  • Oversized tooth profiles for impact capacity
  • Full crown geometry for load distribution
  • Robust hub sections resistant to cracking
  • Premium materials with high toughness

Dust Exclusion

Multi-stage sealing systems:

  1. External deflector ring
  2. Labyrinth seal chamber
  3. Primary lip seal
  4. Grease-filled contact zone

Maintenance Access

For difficult mining locations:

  • Easy grease fitting access
  • Visual leak indicators
  • Color-coded assembly
  • Simplified replacement procedures

Material Specifications

Standard Mining Grade

Component Material Hardness
Hub body EN24 forged 280-320 BHN
Hub teeth Integral, carburized 58-62 HRC
Sleeve EN36 case-hardened 58-62 HRC
Seals Viton for temperature range -

Enhanced Specifications

For extreme conditions:

  • Through-hardened alloy steel options
  • Impact tested to -40°C
  • Corrosion-resistant coatings
  • Special seal materials

Selection Guidelines

Service Factor Selection

Equipment Minimum SF
Primary jaw/gyratory 3.5-4.0
Cone crushers 3.0-3.5
Impact crushers 4.0-5.0
Ball/SAG mills 2.5-3.0
Conveyors 2.0-2.5
Screens 2.5-3.0

Alignment Considerations

Mining equipment alignment challenges:

  • Foundation movement from blasting
  • Thermal effects from outdoor exposure
  • Settlement over time
  • Equipment wear affecting positions

Maintenance Program

Routine Schedule

Interval Action
Daily Visual check, listen for noise
Weekly Feel for temperature, check leaks
Monthly Relubrication if required
Quarterly Detailed inspection, alignment check
Annually Comprehensive overhaul review

Condition Monitoring

Advanced monitoring options:

  • Vibration analysis for wear detection
  • Temperature trending for lubrication issues
  • Periodic grease sampling
  • Alignment verification

Spare Parts Strategy

For remote mining operations:

  • Stock critical sizes on-site
  • Maintain service kits (seals, grease)
  • Have spare complete assemblies for crushers
  • Establish emergency supply arrangements

SMI Mining Coupling Range

Product Offerings

  • Sizes from 100mm to 500mm OD
  • Torque capacity to 2,500,000 Nm
  • Mining-specific seal designs
  • Quick-delivery standard sizes

Support Services

  • Application engineering
  • On-site installation support
  • Maintenance training
  • Emergency replacement supply

Contact SMI for mining-specific coupling solutions and technical support.

Frequently asked questions

Why is dust the main enemy in mining drives?

Abrasive dust that gets past a seal turns the grease into a grinding paste. Tooth wear then accelerates dramatically, and the coupling fails long before its rated life. Seal integrity and re-grease discipline matter more in mining than almost any other industry.

How should I size a coupling for crusher and screen duty?

Apply a high service factor — 1.75 to 2.0 or above for crusher and screen feeds — because tramp metal and surge loading produce torque spikes far above the steady-state figure. If shock is the dominant problem rather than raw torque, consider a grid coupling, whose spring steel grid flexes under peak load.

What should I inspect on a mining coupling and how often?

Seal condition first, then grease colour and grit content, then tooth wear. Inspect at every re-grease. Grease that comes out grey and gritty means the seals are letting dust in, and fixing that is more valuable than replacing the coupling.
