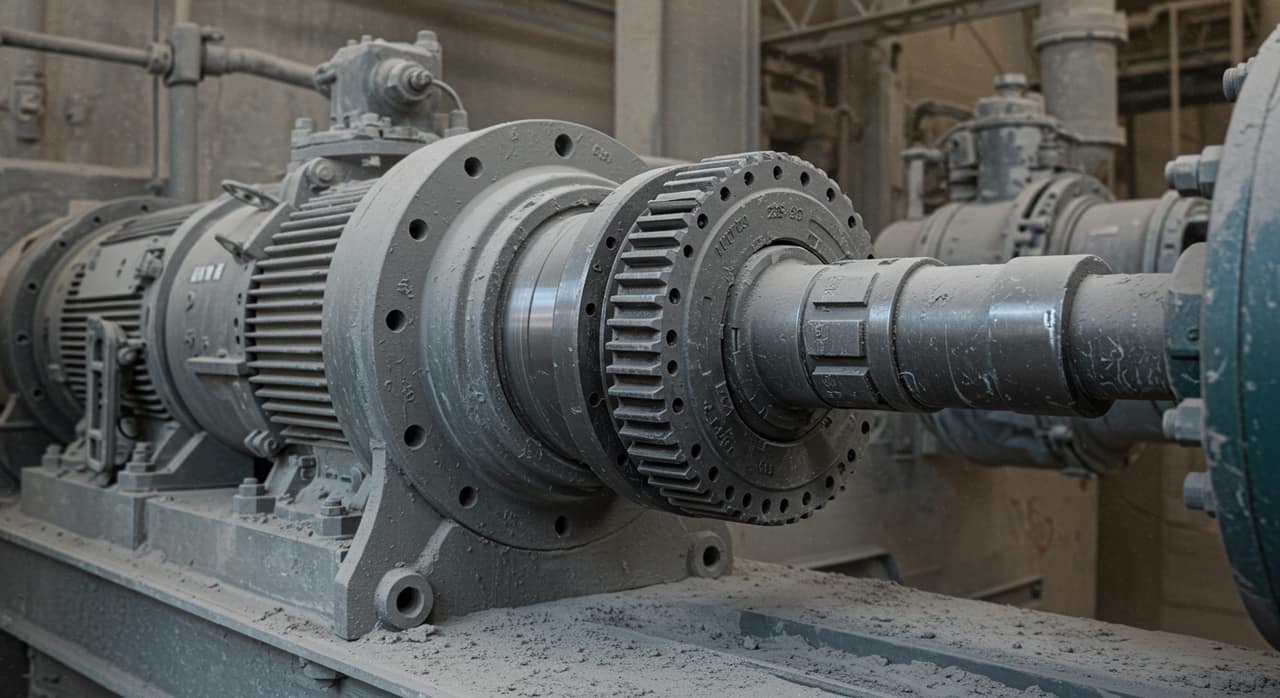

Gear Couplings for Cement and Sugar Mills

Drive reliability in dusty, abrasive environments for mill drives and conveyors.

Cement and sugar mills operate in challenging environments where dust, vibration, and heavy loads test the limits of power transmission components. Gear couplings engineered for these industries ensure reliable operation with minimal maintenance.

Industry-Specific Challenges

Cement Plants

  • Fine cement dust penetrating seals
  • High ambient temperatures near kilns
  • Continuous 24/7 operation
  • Shock loads from clinker processing
  • Large equipment with high inertia

Sugar Mills

  • Seasonal operation with extended shutdowns
  • Cane bagasse fiber contamination
  • Variable moisture conditions
  • Peak loads during crushing
  • Remote locations with limited spares

Key Applications

Cement Industry

Equipment Coupling Requirements
Kiln drives High torque, thermal stability
Vertical mills Extreme shock absorption
Ball mills Heavy sustained loading
Conveyors Moderate torque, long runs
Fans High speed, balanced

Sugar Industry

Equipment Coupling Requirements
Cane crushers Extreme shock, reversing
Mills (tandems) Very high torque, low speed
Crystallizers Moderate, continuous duty
Centrifuges High speed, precise balance
Conveyors Moderate, contaminated environment

Technical Specifications

Cement Mill Couplings

For kiln and mill drives:

  • Service factor: 2.0-2.5 minimum
  • Operating temperature: Up to 80°C ambient
  • Sealing: Double lip seals with labyrinth
  • Grease: High-temperature lithium complex
  • Balance: G6.3 for fans, G10 for mills

Sugar Mill Couplings

For crusher and mill drives:

  • Service factor: 2.5-3.5 for crushing
  • Torque capacity: Up to 2,000,000 Nm
  • Speed range: 5-30 RPM typical
  • Materials: Corrosion-resistant finish
  • Maintenance: Easy access for shutdown work

Design Features for Harsh Environments

Enhanced Sealing

Multiple levels of seal protection:

  1. Primary lip seal: Contact type for grease retention
  2. Secondary labyrinth: Non-contact dust exclusion
  3. Outer deflector: Prevents direct contamination

Dust-Resistant Grease

Specifications for dusty environments:

  • Higher viscosity base oil
  • Tacky additives for retention
  • Anti-wear additives for particle abrasion
  • Extended relubrication intervals

Corrosion Protection

For humid sugar mill conditions:

  • Phosphate or zinc coating on external surfaces
  • Sealed grease chambers
  • Stainless steel hardware option
  • Proper storage between seasons

Maintenance Requirements

Cement Plants

Interval Action
Weekly Visual inspection for leaks
Monthly Temperature and vibration check
Quarterly Relubrication, seal inspection
Annually Comprehensive overhaul

Sugar Mills

Phase Action
Pre-season Complete inspection, grease replacement
During crushing Weekly monitoring
Post-season Thorough cleaning, preservation
Storage Rotate shafts monthly if possible

Common Failure Modes

In Cement Plants

  1. Seal failure: From heat and dust abrasion
  2. Tooth wear: From contaminated grease
  3. Hub cracking: From shock overload

In Sugar Mills

  1. Corrosion: From moisture during shutdown
  2. Bearing damage: From side loads
  3. Grease degradation: From extended storage

SMI Solutions

Cement Industry Products

  • Kiln drive couplings up to 1,000,000 Nm
  • Vertical mill couplings with enhanced sealing
  • Standard sizes for common equipment
  • Custom designs for specific applications

Sugar Industry Products

  • Tandem mill couplings for all tonnages
  • Brake drum types for crystallizers
  • Seasonal maintenance kits
  • Emergency replacement service

Case Study: Cement Kiln Drive

Challenge:

  • Coupling life limited to 12 months
  • Frequent seal replacements between overhauls

Solution:

  • Upgraded to double labyrinth seal design
  • Changed to high-temp synthetic grease
  • Quarterly inspection program

Result:

  • 36-month coupling life achieved
  • Zero unplanned stoppages

Contact SMI for application-specific solutions for your cement or sugar mill.

Frequently asked questions

What service factor should I use for cement and sugar mill drives?

Higher than a general conveyor. Mill and kiln drives see sustained load with surges, and cane mills in particular see severe fluctuating torque. Use 1.75 to 2.0 as a starting point and tell us the specific machine, because sizing on the steady-state figure alone under-selects these drives consistently.

How does cement dust affect coupling life?

The same way mining dust does — abrasive particles past a seal turn grease into a lapping compound and accelerate tooth wear. Seal integrity is the single most important maintenance item on a cement plant coupling.

Do seasonal crushing campaigns change how I should maintain couplings?

Yes. A sugar mill running hard for a season and then standing needs a service at the end of the campaign, not just before the next one — grease left contaminated for months allows corrosion to start on tooth flanks while the plant is idle.
