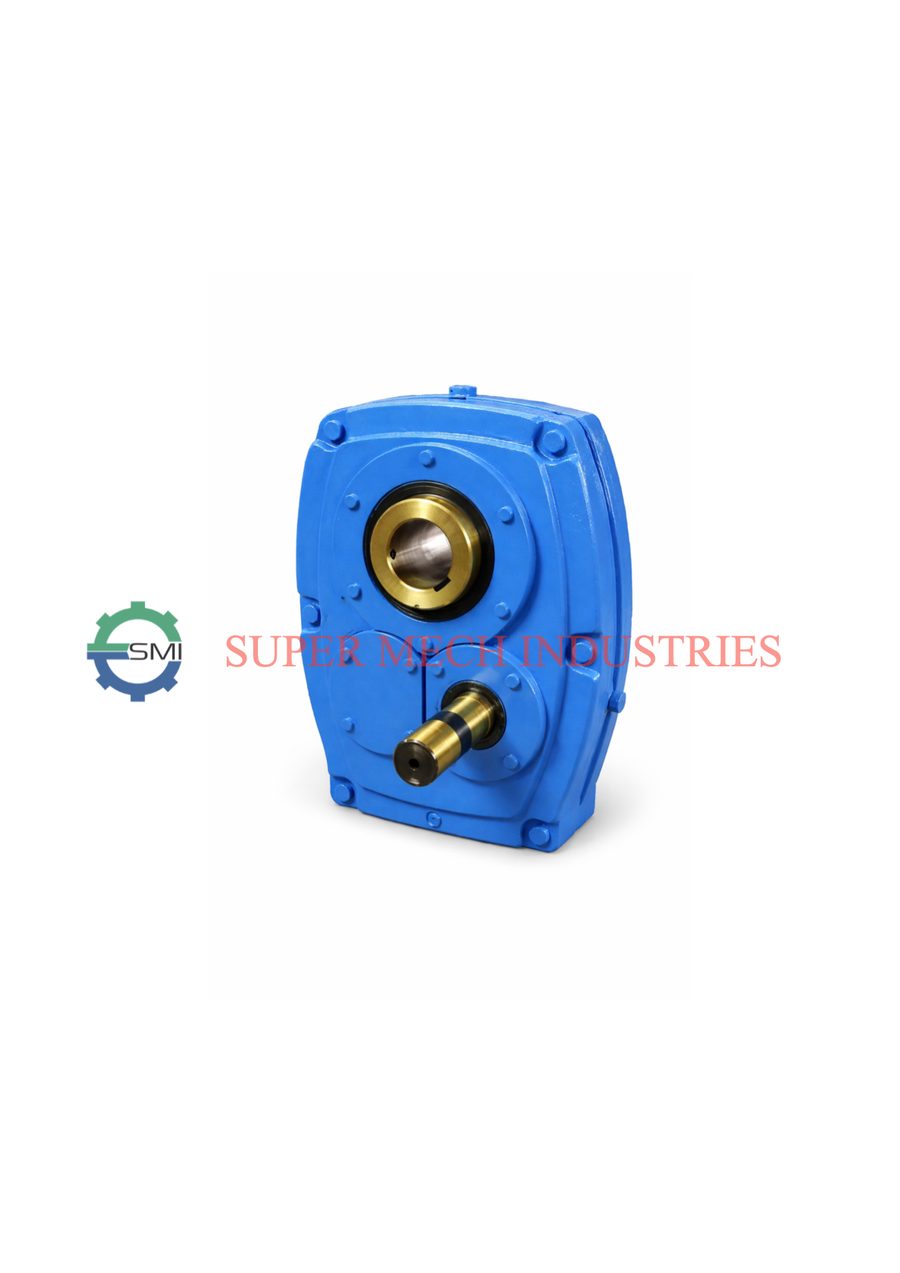

Shaft Mounted Speed Reducer Gear Manufacturer in Ahmedabad, India
Shaft Mounted Speed Reducer (SMSR) Gearboxes are widely used in bulk material handling systems. These gearboxes are mounted directly on the driven shaft, eliminating the need for alignment and separate base plates. With a taper bush mounting system and torque arm, they are easy to install and maintain. Designed for heavy-duty use, SMSRs are efficient, durable, and ideal for dusty or harsh environments like mining, quarrying, and aggregate handling.
Key Features
- Direct shaft mounting—no base required
- Compact and space-saving design
- Taper bush for easy installation and removal
- Torque arm included for reaction load support
- Rugged construction for heavy-duty performance
Specifications
- Gear Ratios: 5:1, 13:1, 20:1
- Power Range: 0.5 kW to 50 kW
- Torque Range: Up to 17,000 Nm
- Mounting: Shaft-mounted with torque arm
- Material: Cast iron housing, hardened & ground gears
- Lubrication: Grease-packed or oil-filled depending on application
Applications
- Belt conveyors
- Bucket elevators
- Crushers and screens
- Mining and quarrying equipment
- Material handling and processing plants
Frequently Asked Questions
What is the Shaft Mounted Speed Reducer Gear used for?
The Shaft Mounted Speed Reducer Gear is used in belt conveyors, bucket elevators, crushers and screens, mining and quarrying equipment. Heavy-duty shaft-mounted gearbox designed for direct mounting on driven shafts, offering efficient torque transmission and space savings.
What are the key specifications of the Shaft Mounted Speed Reducer Gear?
Key specifications include Gear Ratios: 5:1, 13:1, 20:1; Power Range: 0.5 kW to 50 kW; Torque Range: Up to 17,000 Nm; Mounting: Shaft-mounted with torque arm. Custom sizes are available on request.
Does Super Mech Industries offer custom Shaft Mounted Speed Reducer Gear sizes?
Yes. SMI manufactures the Shaft Mounted Speed Reducer Gear with custom bore, material, and design to your drawing, dispatched from our Odhav, Ahmedabad facility — standard sizes typically ship within a week.
Is the Shaft Mounted Speed Reducer Gear from SMI ISO certified?
Yes. Super Mech Industries is ISO 9001:2015 certified (Certificate No. 09114716A) and holds government ZED certification, manufacturing the Shaft Mounted Speed Reducer Gear in Ahmedabad, Gujarat, India, with exports to 29 countries.
