Chain Coupling Manufacturer in Ahmedabad, India
Super Mech Industries is a chain coupling manufacturer in Ahmedabad, India. Its chain coupling joins two sprockets with a double-strand roller chain, a simple, robust design for high torque at low speed that tolerates minor shaft misalignment. The spec sheet lists 24 sizes, 3812 to 40028, rated 99 Nm to 717,000 Nm, with bores up to 670 mm.

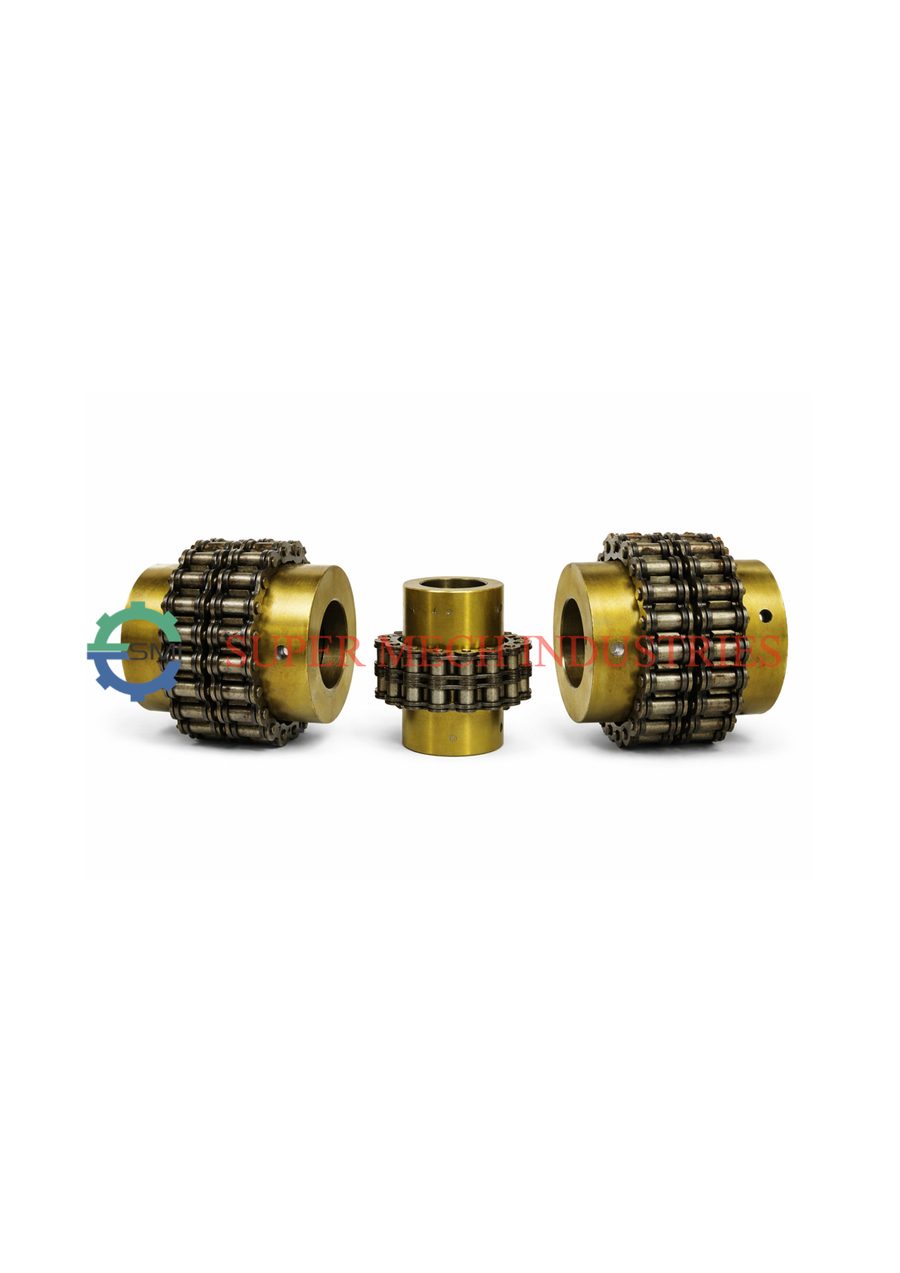

Chain Couplings consist of two sprockets connected by a double-strand roller chain. The design is simple, robust, and ideal for transmitting high torque at low speeds. Chain couplings tolerate minor shaft misalignment and are easy to install and maintain. They are especially suitable for harsh and dirty operating conditions, such as those found in mining, steel, and material handling industries. Regular lubrication is required for optimal performance and service life.
Key Features
- High torque transmission capability
- Compact and simple construction
- Accommodates slight shaft misalignments
- Easy installation and removal
- Cost-effective solution for rugged environments
Specifications
- Torque Range: 99-717,000 Nm (sizes 3812 to 40028)
- Bore Sizes: 8-670mm
- Speed: Up to 1,200 RPM
- Temperature Range: -20°C to +100°C
- Material: Steel sprockets with roller chain
- Lubrication: Required for extended life
Applications
- Conveyors
- Cranes and hoists
- Mixers and agitators
- Steel and rolling mills
- Heavy-duty power transmission systems
Chain coupling size chart: 3812 to 40028
Every size from the SMI spec sheet, with torque, chain pitch, bore range, dimensions, cover size and weight. Bores are finished to your shaft within the listed range.
Chain couplings — ratings and dimensions
Sizes 3812 to 40028 (chain number: last two digits = number of sprocket teeth, the digits before them = chain pitch code). Torque in Nm; chain pitch in mm (inch); bores and dimensions in mm; weight in kg.
| Size | Torque (Nm) | Chain pitch (mm) | Bore min (mm) | Bore max (mm) | ØA (mm) | ØB (mm) | D (mm) | E (mm) | G (mm) | L (mm) | Cover OD (mm) | Cover H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3812 | 99 | 9.525 (3/8") | 8 | 16 | 45 | 25 | 24.0 | 30 | 4.9 | 64.9 | 59 | 61 | 0.4 |
| 4012 | 217 | 12.70 (1/2") | 9 | 22 | 61 | 35 | 33.1 | 36 | 7.4 | 79.4 | 75 | 75 | 1.1 |
| 4014 | 295 | 12.70 (1/2") | 9 | 28 | 69 | 43 | 33.1 | 36 | 7.4 | 79.4 | 84 | 75 | 1.4 |
| 4016 | 385 | 12.70 (1/2") | 13 | 32 | 77 | 50 | 33.1 | 40 | 7.4 | 87.4 | 92 | 75 | 2 |
| 5014 | 560 | 15.875 (5/8") | 13 | 35 | 86 | 53 | 41.0 | 45 | 9.7 | 99.7 | 101 | 85 | 2.7 |
| 5016 | 735 | 15.875 (5/8") | 13 | 40 | 96 | 60 | 41.0 | 45 | 9.7 | 99.7 | 111 | 85 | 3.3 |
| 5018 | 930 | 15.875 (5/8") | 13 | 45 | 107 | 70 | 41.0 | 45 | 9.7 | 99.7 | 122 | 85 | 4.2 |
| 6018 | 1750 | 19.05 (3/4") | 18 | 56 | 128 | 85 | 51.1 | 56 | 11.5 | 123.5 | 142 | 106 | 7.4 |
| 6022 | 2370 | 19.05 (3/4") | 18 | 71 | 152 | 110 | 51.1 | 56 | 11.5 | 123.5 | 167 | 106 | 11.3 |
| 8018 | 3880 | 25.40 (1") | 23 | 75 | 170 | 115 | 65.3 | 63 | 15.2 | 141.2 | 186 | 130 | 16 |
| 8022 | 5580 | 25.40 (1") | 28 | 90 | 203 | 140 | 65.3 | 71 | 15.2 | 157.2 | 220 | 130 | 25.5 |
| 10020 | 8780 | 31.75 (1.25") | 33 | 110 | 233 | 160 | 81.9 | 80 | 18.8 | 178.8 | 250 | 148 | 38.5 |
| 12018 | 13200 | 38.10 (1.5") | 43 | 115 | 256 | 170 | 102.7 | 90 | 22.7 | 202.7 | 307 | 181 | 47.3 |
| 12022 | 17100 | 38.10 (1.5") | 53 | 145 | 304 | 210 | 102.7 | 100 | 22.7 | 222.7 | 357 | 181 | 72.8 |
| 16018 | 28600 | 50.80 (2") | 58 | 155 | 341 | 224 | 131.7 | 112 | 30 | 254 | 406 | 250 | 110 |
| 16022 | 41700 | 50.80 (2") | 73 | 190 | 405 | 280 | 131.7 | 140 | 30 | 310 | 472 | 250 | 184 |
| 20018 | 57000 | 63.50 (2.5") | 85 | 205 | 426 | 294 | 160.6 | 241 | 37.5 | 519.5 | 496 | 280 | 317 |
| 20022 | 71900 | 63.50 (2.5") | 95 | 260 | 507 | 374 | 160.6 | 241 | 37.5 | 519.5 | 578 | 280 | 488 |
| 24022 | 129000 | 76.20 (3") | 117 | 290 | 608 | 420 | 197.3 | 353 | 45 | 751 | — | — | 872 |
| 24026 | 157000 | 76.20 (3") | 147 | 365 | 705 | 520 | 197.3 | 353 | 45 | 751 | — | — | 1277 |
| 32022 | 255000 | 101.60 (4") | 197 | 400 | 806 | 570 | 263.0 | 400 | 60 | 860 | — | — | 1791 |
| 40020 | 494000 | 127 (5") | 247 | 450 | 932 | 640 | 332.3 | 512 | 75.6 | 1100 | — | — | 2862 |
| 40024 | 602000 | 127 (5") | 297 | 560 | 1093 | 800 | 332.3 | 512 | 75.6 | 1100 | — | — | 4295 |
| 40028 | 717000 | 127 (5") | 347 | 670 | 1255 | 960 | 332.3 | 512 | 75.6 | 1100 | — | — | 6020 |
- Covers are listed up to size 20022; larger sizes are supplied without a standard cover.
- Two pitch values on the spec sheet are printed as 9.252 and 19.50; the standard 3/8 in and 3/4 in pitches are 9.525 mm and 19.05 mm, which is what is shown.
Source: SMI spec sheet chain-coupling.pdf.
Frequently Asked Questions
What is a chain coupling?
A chain coupling connects two shafts through two sprockets wrapped by a double-strand roller chain. The design is simple and robust, transmits high torque at low speed, and tolerates minor shaft misalignment.
Does a chain coupling need lubrication?
Yes. Regular lubrication is required for good performance and service life. The spec sheet lists a cover for sizes up to 20022; larger sizes are supplied without a standard cover.
How do I read a chain coupling size number?
The last two digits are the number of sprocket teeth and the digits before them are the chain pitch code. Size 4016, for example, uses 12.70 mm (1/2 in) pitch chain on 16-tooth sprockets, and 10020 uses 31.75 mm (1.25 in) pitch on 20-tooth sprockets.
Where are chain couplings used?
Typical applications are conveyors, cranes and hoists, mixers and agitators, steel and rolling mills, and heavy-duty power transmission. The design suits harsh and dirty conditions such as mining, steel and material handling.
What should I send for a chain coupling quote?
Send both shaft diameters and keyways, the motor kW and rpm, and the application, and SMI's engineers come back with the size. The sizing method is: torque T (Nm) = 9550 × kW ÷ rpm, multiplied by a service factor for the load, then a size whose torque rating and bore range cover the result.
Is Super Mech Industries a chain coupling manufacturer or a trader?
A manufacturer. Chain couplings are made at SMI's factory in Odhav, Ahmedabad, Gujarat, which is ISO 9001:2015 certified (Certificate No. 09114716A). SMI also makes chain sprockets.
What sizes of Chain Coupling does SMI manufacture?
SMI lists 24 sizes from 3812 to 40028 rated from 99 Nm to 717,000 Nm, with bores finished up to 670 mm. The full size chart with dimensions is on this page and on the spec sheet.
