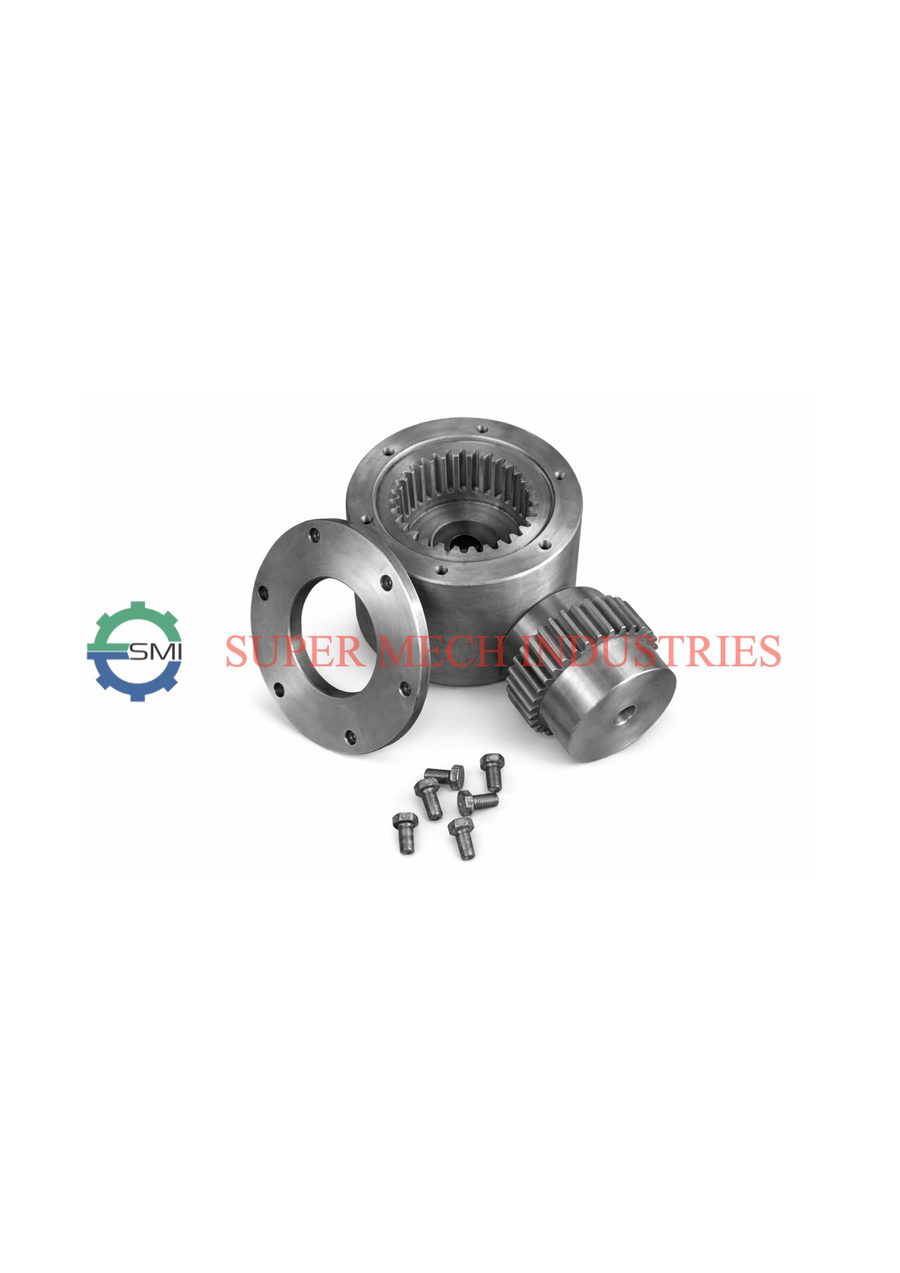

Brake Drum Geared Coupling Manufacturer in Ahmedabad, India
Brake Drum Geared Couplings combine the torque-handling capacity of a geared coupling with an integrated brake drum for systems requiring both power transmission and mechanical braking. These couplings consist of two hubs with external gear teeth, connected by a sleeve with internal teeth. The brake drum is mounted as part of the coupling, allowing it to interface with braking systems. This makes them ideal for cranes, hoists, and material handling equipment where frequent start-stop operations and braking are required.
Key Features
- Integrated brake drum for mechanical braking applications
- High torque capacity with compact design
- Accommodates angular, axial, and parallel misalignments
- All-metal construction for durability in demanding environments
- Easy assembly, alignment, and maintenance
Specifications
- Torque Range: 500-50,000 Nm
- Bore Sizes: 25-300mm
- Speed: Up to 3,600 RPM
- Temperature Range: -20°C to +80°C
- Material: Forged steel or cast steel hubs, precision-machined gear teeth
- Brake Drum Sizes: As per IS standards or custom on request
Applications
- EOT cranes and hoists
- Conveyors with braking systems
- Winches and lifting equipment
- Steel and rolling mills
- Heavy industrial drive systems requiring braking
Frequently Asked Questions
What is the Brake Drum Geared Coupling used for?
The Brake Drum Geared Coupling is used in eot cranes and hoists, conveyors with braking systems, winches and lifting equipment, steel and rolling mills. Heavy-duty geared coupling with integrated brake drum, designed for high torque transmission and mechanical braking in industrial drives.
What are the key specifications of the Brake Drum Geared Coupling?
Key specifications include Torque Range: 500-50,000 Nm; Bore Sizes: 25-300mm; Speed: Up to 3,600 RPM; Temperature Range: -20°C to +80°C. Custom sizes are available on request.
Does Super Mech Industries offer custom Brake Drum Geared Coupling sizes?
Yes. SMI manufactures the Brake Drum Geared Coupling with custom bore, material, and design to your drawing, dispatched from our Odhav, Ahmedabad facility — standard sizes typically ship within a week.
Is the Brake Drum Geared Coupling from SMI ISO certified?
Yes. Super Mech Industries is ISO 9001:2015 certified (Certificate No. 09114716A) and holds government ZED certification, manufacturing the Brake Drum Geared Coupling in Ahmedabad, Gujarat, India, with exports to 29 countries.
