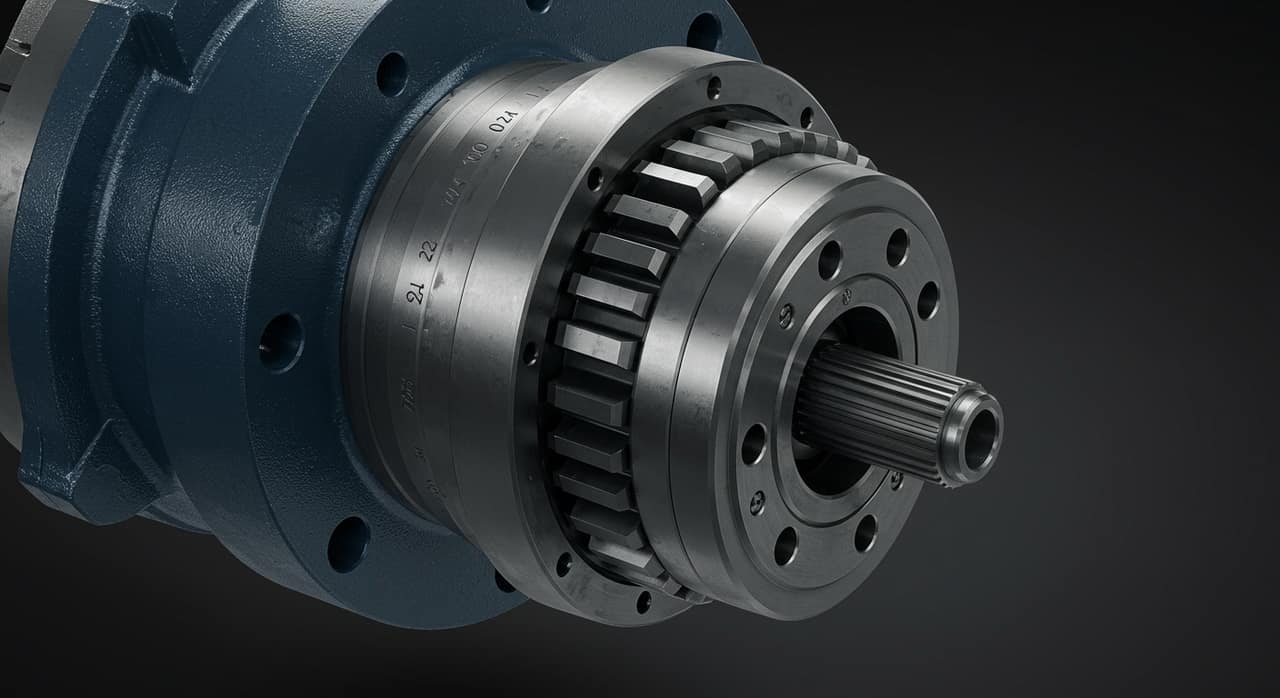

Rigid Gear Couplings: When to Use Them

Learn when rigid gear couplings suit your application requirements.

While flexible gear couplings are most common, rigid gear couplings serve specific applications where zero flexibility is required or beneficial. Understanding when to use rigid designs helps optimize your drivetrain performance.

What is a Rigid Gear Coupling?

Construction

Rigid gear couplings feature:

  • Flanged hubs with close-tolerance fits
  • Reamed bolt holes for shear loading
  • No flexibility elements or crowned teeth
  • Precision machined mating surfaces

Characteristics

Parameter Description
Misalignment Zero tolerance
Backlash Minimal to none
Flexibility None
Torque capacity Very high
Axial movement None

When to Use Rigid Couplings

Precision Machinery

Where exact shaft alignment is maintained:

  • Machine tool spindles
  • Test equipment
  • Precision positioning systems
  • Line shaft connections

High-Accuracy Applications

Requirements for:

  • Zero backlash operation
  • Precise angular transmission
  • Repeatable positioning
  • No torsional flexibility

Pre-Aligned Systems

Situations where:

  • Shafts are part of same housing
  • Alignment is permanently fixed
  • No thermal expansion expected
  • Foundation movement impossible

Comparison with Flexible Couplings

Feature Rigid Flexible Gear
Misalignment None allowed Up to 3° total
Backlash Zero Small amount
Shock absorption None Good
Installation Critical alignment More forgiving
Cost Lower Higher
Maintenance Minimal Lubrication required

Alignment Requirements

Rigid Coupling Demands

Shaft alignment must be:

  • Angular: < 0.02mm/100mm
  • Offset: < 0.02mm total
  • Endplay: Controlled by bearing system

Consequences of Misalignment

With rigid couplings, misalignment causes:

  • Bearing overload and failure
  • Shaft fatigue and breakage
  • Coupling damage
  • Excessive vibration

Installation Procedure

Step 1: Preparation

  • Verify shaft dimensions match exactly
  • Clean all mating surfaces
  • Check bolt hole alignment
  • Prepare precision measuring equipment

Step 2: Mounting

  • Use interference fit or precision slip fit
  • Align bores with high accuracy
  • Insert reamed bolts hand-tight
  • Final torque using pattern sequence

Step 3: Verification

  • Measure coupling runout
  • Verify alignment readings
  • Check for binding when rotating
  • Document installation parameters

Applications to Avoid

Do Not Use Rigid When:

  • Foundation settlement possible
  • Thermal expansion expected
  • Running alignment may vary
  • Shock loads present
  • Misalignment cannot be maintained

Use Flexible Instead For:

  • General industrial drives
  • Pump and motor connections
  • Variable load applications
  • Outdoor or variable temperature

SMI Rigid Products

While we specialize in flexible gear couplings, we also provide:

  • Rigid flange couplings
  • Muff couplings
  • Sleeve couplings
  • Custom rigid designs

When Customers Ask for Rigid

We typically recommend:

  1. Review actual alignment capability
  2. Consider hybrid solutions (half gear)
  3. Evaluate flexible alternatives
  4. Confirm application really needs rigid

In most industrial applications, a properly sized flexible gear coupling provides better reliability and longer service life than rigid alternatives.

Contact SMI to discuss whether rigid or flexible coupling suits your application best.
