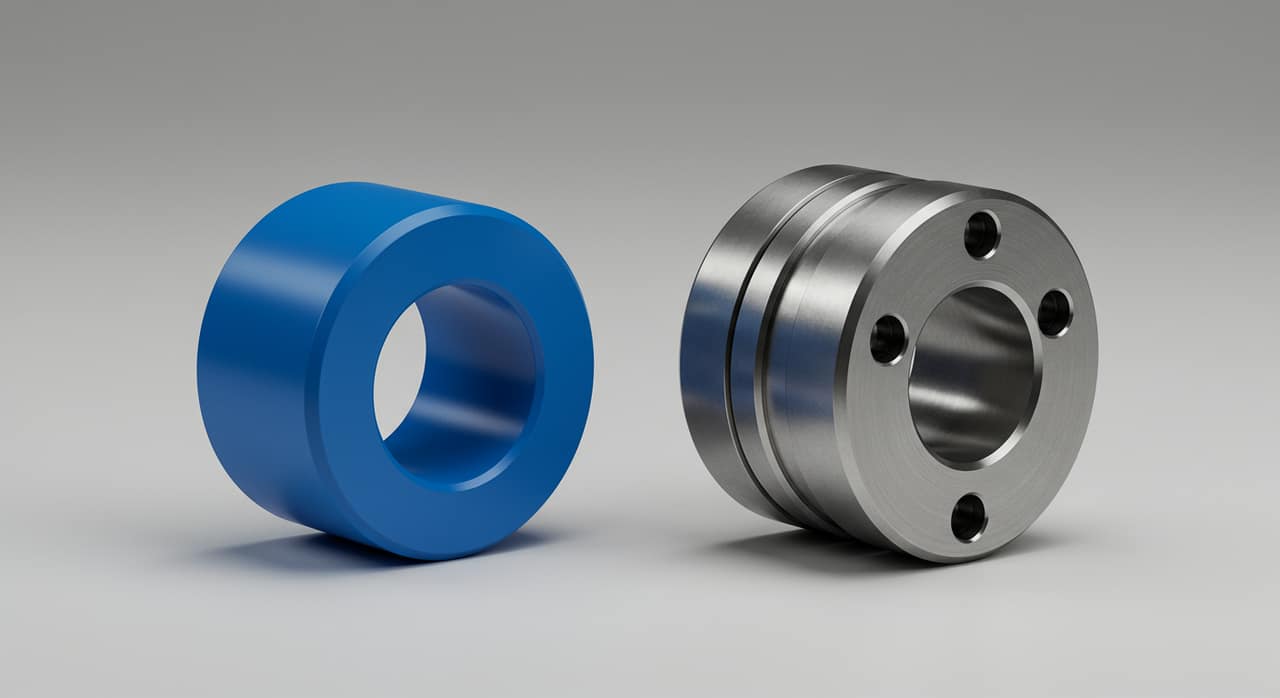

Nylon Gear Coupling vs Metal Gear Coupling: When to Use Each
Compare nylon gear coupling and metallic gear coupling on torque, alignment, and maintenance.
Choosing between nylon gear couplings and metal gear couplings depends on your application requirements. Each type offers distinct advantages for specific operating conditions.
Nylon Gear Coupling Overview
Construction
Nylon gear couplings typically feature:
- Nylon sleeve with internal teeth
- Metal hubs with external teeth
- No lubrication required
- Split sleeve design for easy installation
Advantages
| Benefit | Description |
|---|---|
| Maintenance-free | No grease filling or relubrication |
| Electrically insulating | Breaks electrical continuity |
| Corrosion resistant | Suitable for wet environments |
| Lightweight | Lower rotational inertia |
| Cost-effective | Economical for light-medium duty |
Limitations
- Lower torque capacity than metal equivalents
- Temperature limited (typically -20°C to +80°C)
- Gradual wear in continuous duty
- Not suitable for shock loads
Metal Gear Coupling Overview
Construction
Metal gear couplings feature:
- All-steel hubs and sleeves
- Grease-lubricated tooth contact
- Crowned or straight teeth
- Various seal configurations
Advantages
| Benefit | Description |
|---|---|
| High torque capacity | Maximum power density |
| Shock load capability | Handles impact and reversing |
| Temperature range | -40°C to +150°C with proper grease |
| Long service life | Decades with maintenance |
| Proven reliability | Industry standard for heavy duty |
Considerations
- Requires lubrication and maintenance
- Higher initial cost
- Greater weight and inertia
- Needs alignment care
Comparison Chart
| Parameter | Nylon Gear | Metal Gear |
|---|---|---|
| Torque capacity | Low-Medium | High-Very High |
| Misalignment | ±1° angular | ±1.5° angular |
| Maintenance | None | Periodic lubrication |
| Temperature | -20°C to +80°C | -40°C to +150°C |
| Shock loads | Not recommended | Excellent |
| Cost | Lower | Higher |
| Life expectancy | 2-5 years typical | 10-20 years typical |
| Electrical | Insulating | Conducting |
Application Guide
Choose Nylon Gear Coupling When:
- Pump and fan drives in moderate duty
- Applications requiring electrical isolation
- Corrosive or wet environments
- Maintenance access is limited
- Budget is constrained
- Light to medium torque requirements
Choose Metal Gear Coupling When:
- Heavy industrial machinery
- Steel, cement, mining applications
- High shock or reversing loads
- Critical equipment requiring reliability
- High-temperature environments
- Maximum torque density needed
Industry Applications
Nylon Coupling Typical Uses
- HVAC fan units
- Small pumps
- Light conveyors
- Packaging machinery
- Food processing (corrosion resistance)
Metal Coupling Typical Uses
- Rolling mills
- Crushers and grinding mills
- Heavy conveyors
- Crane hoists
- Compressors and large pumps
Making the Right Choice
Step 1: Assess Requirements
- Calculate design torque with service factor
- Identify operating temperature range
- Consider shock and reversing loads
- Note alignment conditions
Step 2: Evaluate Environment
- Dust and contamination levels
- Moisture or corrosive conditions
- Maintenance accessibility
- Electrical isolation needs
Step 3: Consider Lifecycle Cost
- Initial purchase price
- Maintenance requirements over time
- Expected service life
- Replacement availability
SMI Recommendations
We offer both nylon and metal gear couplings:
Nylon Range: Sizes 1M to 8M, suitable for motors up to 45kW
Metal Range: Full range from 100mm to 500mm OD, torque to 2,000,000 Nm
Contact us for application-specific recommendations comparing nylon vs metal options for your equipment.
